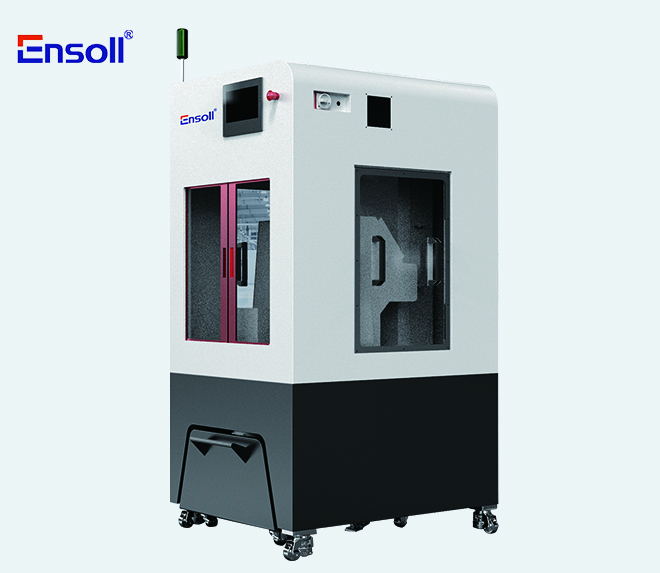

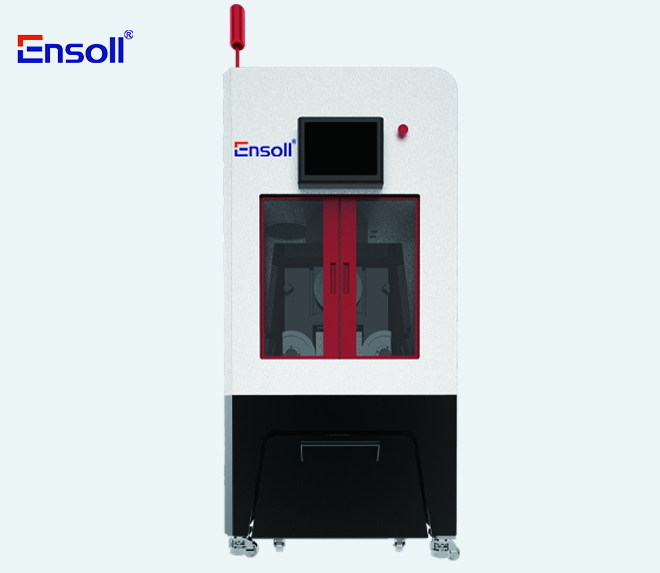

ESO-GM

Description :

Designed specifically for magnetic material cutting, it enables multi-block loading for batch processing, achieving efficient mass production

Send Message

Features :

1.nables batch cutting of magnetic materials, significantly improving processing efficiency.

2.Automatic tension adjustment structure design, no manual adjustment needed.

3.Single person can change lines in just 1 minute, significantly reducing line-changing time.

4.Dry and wet separation, no dust pollution.

5.Single operator for multiple devices, reducing labor costs by 35%; effectively prevents mishaps due to operator errors.

Technical Parameters :

Item	Specification
Cutting Height Setting	0–200
Maximum Cutting Size	160×200×300 mm
Feed Speed	0.1–2000 mm/min
Spindle Speed	0–3000 RPM
Cutting Wire Speed	1–32 m/s
Wire Length	1880 mm
Wheel Diameter	230 mm
Operating Voltage	220V
Total Power	2.5 kW
Worktable Load Capacity	100 kg (at 0.1–2000 mm/min feed speed)
Water Tank Dimensions	945×550×415 mm (L×W×H)
Machine Dimensions	1120×933×1094 mm (L×W×H)
Water Pump	220V, 25 L/min
Weight	660 kg

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.
