ESG400-4T

Name: ESG400-4T Gantry Endless Diamond Wire Saw
Brand: Ensoll Tools
SKU: esg400-4t

Description :

The ESG400 gantry cutter has the same functions as the ESG200 gantry cutter, but with larger dimensions, making it suitable for cutting large workpieces and materials.

Send Message

Features :

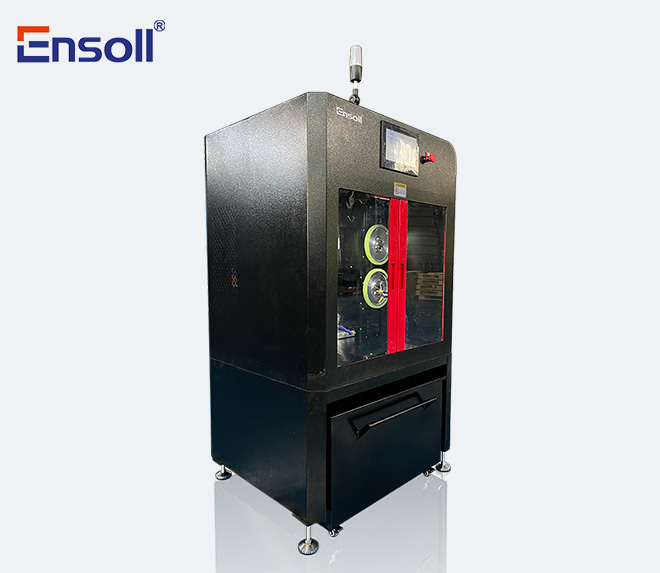

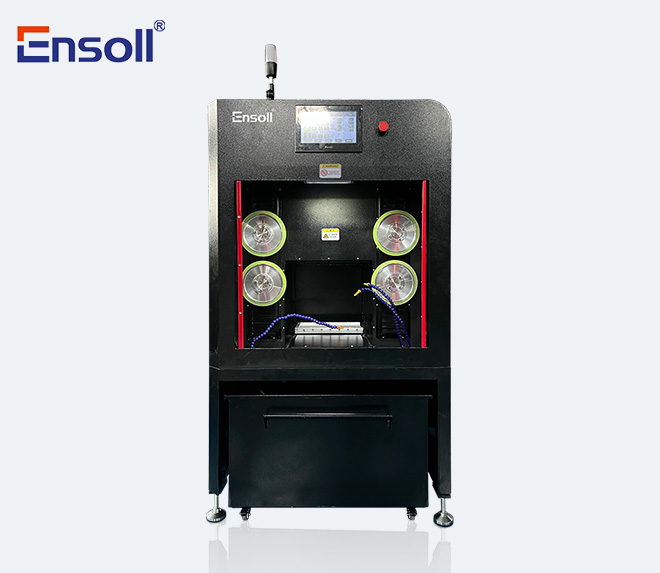

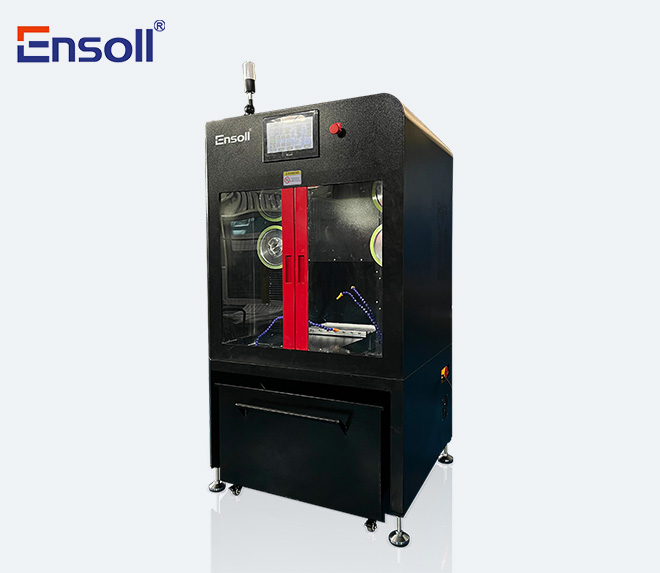

ESG400-4T is a large-format gantry endless diamond wire saw machine developed for bigger workpieces and longer cutting travel. The continuous loop cutting method supports stable wire speed, narrow kerf and controlled cutting force across hard and brittle materials.

Use this model when the ESG200 working envelope is insufficient but gantry access and programmable cutting remain important. Machine configuration should be matched with the correct endless diamond wire, fixtures and validated process parameters.

1. Perfect Cutting Quality Equipment Lifespan

2. Continuous operation of equipment,increased production capacity by 30%

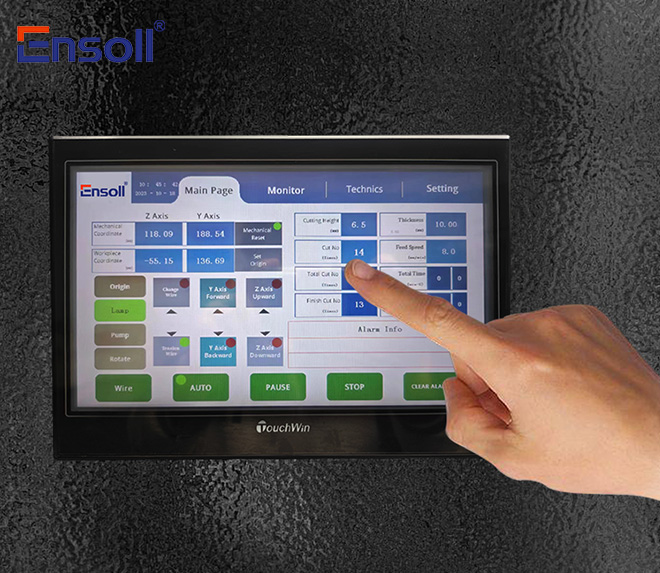

3. The Exclusive Intelligent Digital Testing,Platform ensures the optimal cutting plan.

4. Cleverly Designed Tension Structure,lntelligent Adjustment of tension force

Technical Parameters :

Displacement servo motor Z/Y power	400KW

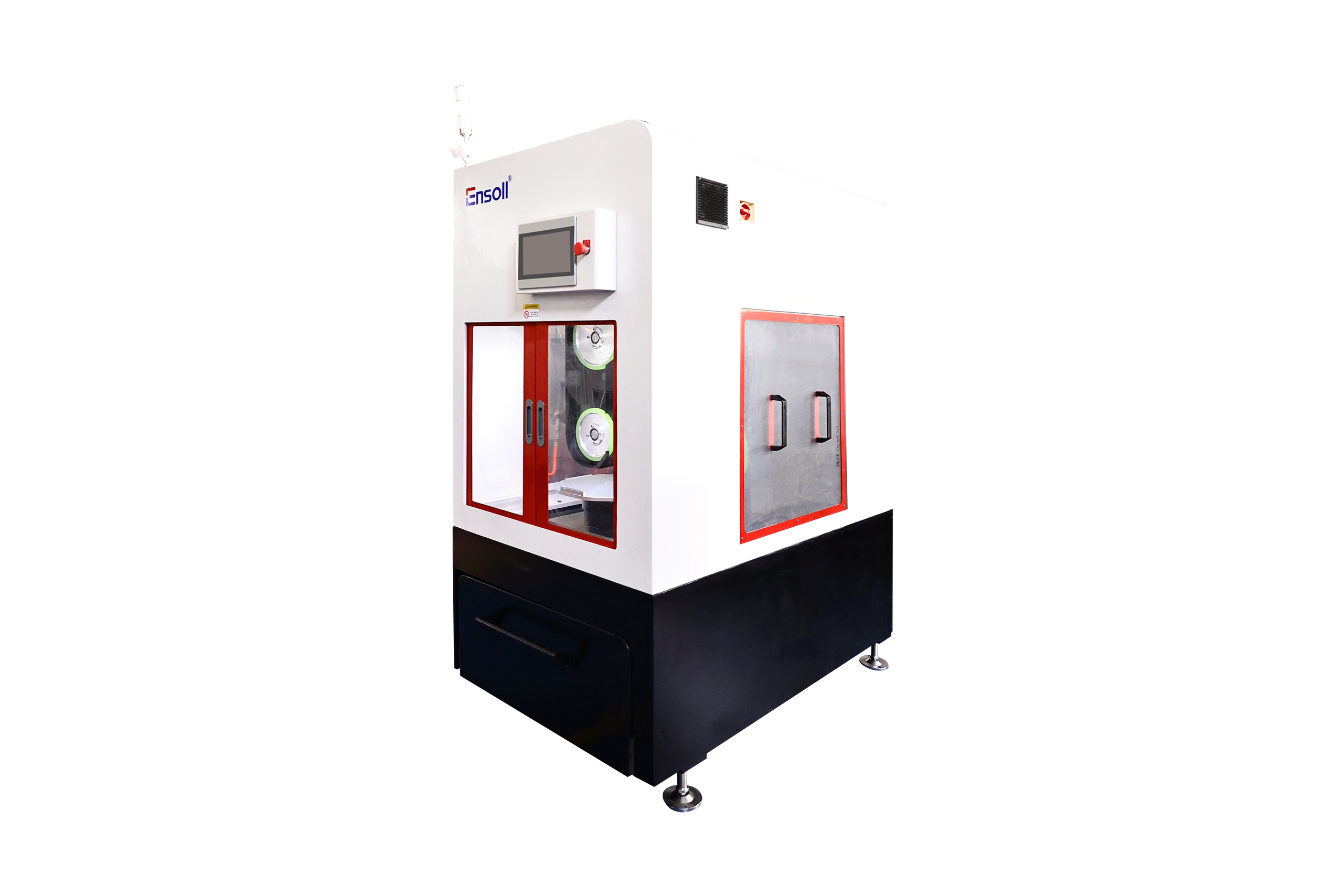

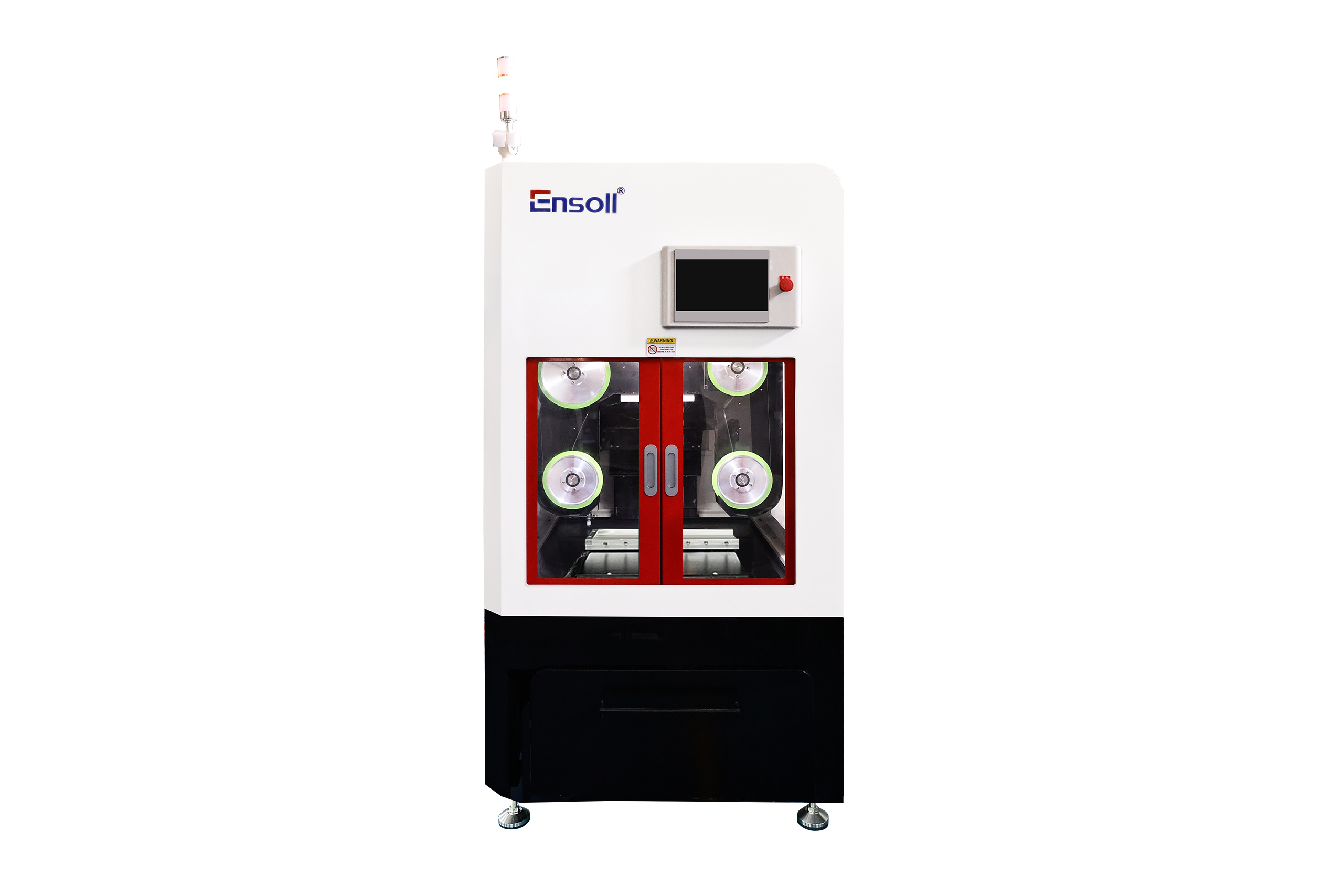

Machine size	With rotary table: 2200 × 1510 × 1100 mm; Standard machine: 2100 × 1510 × 1100 mm
Loding table size	400mm×400mm×400mm(L×W×H)
Total weight	With rotary table: 1,000 kg net / 1,200 kg operating (water tank full); Standard machine: 900 kg net / 1,100 kg operating (water tank full)
Loading capacity	200KG(Rotary head can bear 30KG)
Water pump	120W 25L/min
Water tank size	870×750×590mm(116L)
Power	With rotary table: 4 kW; Standard machine: 3.5 kW
Drive wheel diameter	280mm
Driven wheel diameter	260mm
wire spend	1-32m/s
Wire length	2893 mm

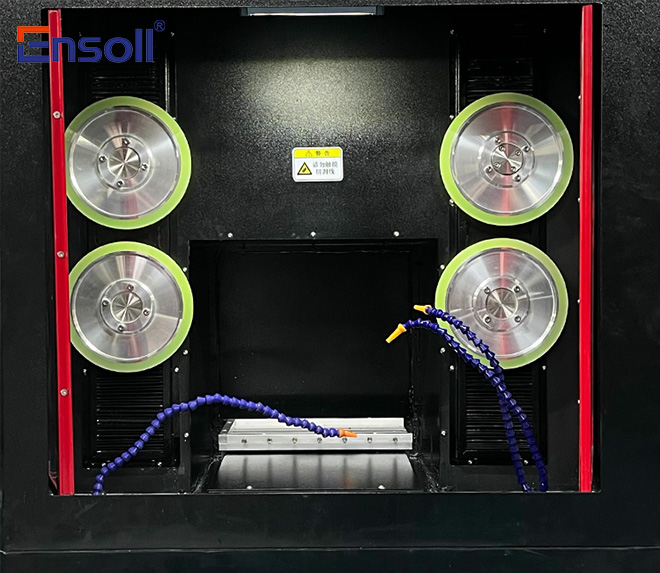

Wheel options	Fan cup wheels or Fuma wheels optional (fan cup wheels shown)
*The maximum cutting size will up to 380mm if adding rotating head

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.
