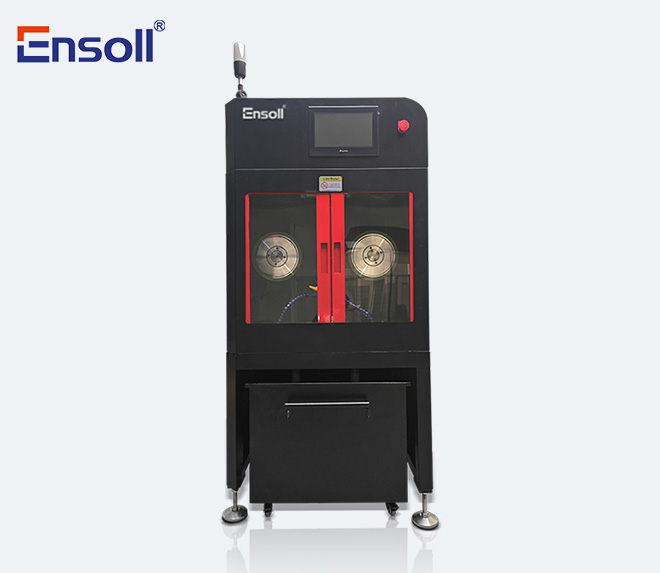

ESG200-2T endless diamond wire saw — front view showing both wire spools

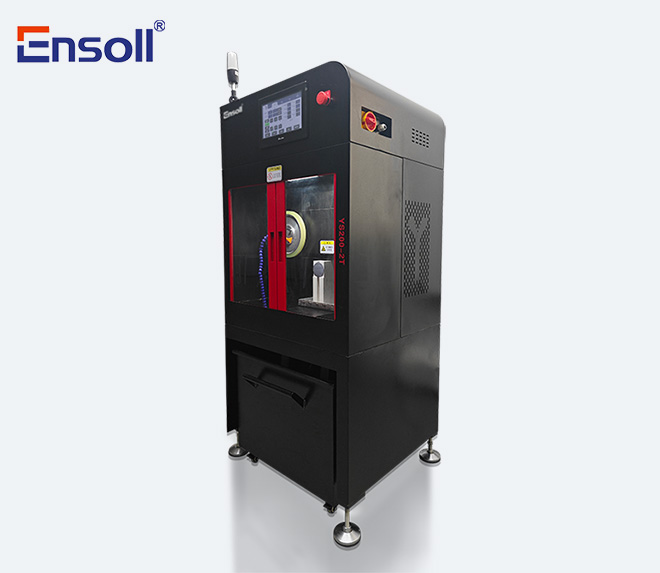

ESG200-2T endless diamond wire saw — three-quarter view

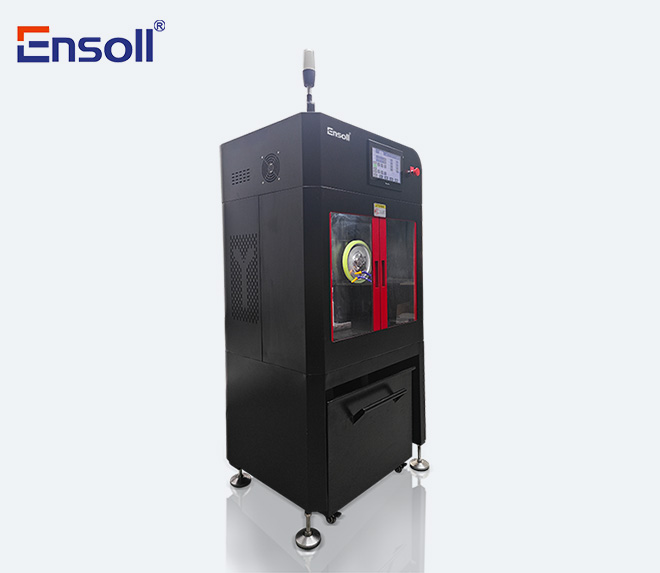

ESG200-2T endless diamond wire saw — side view of the cutting chamber

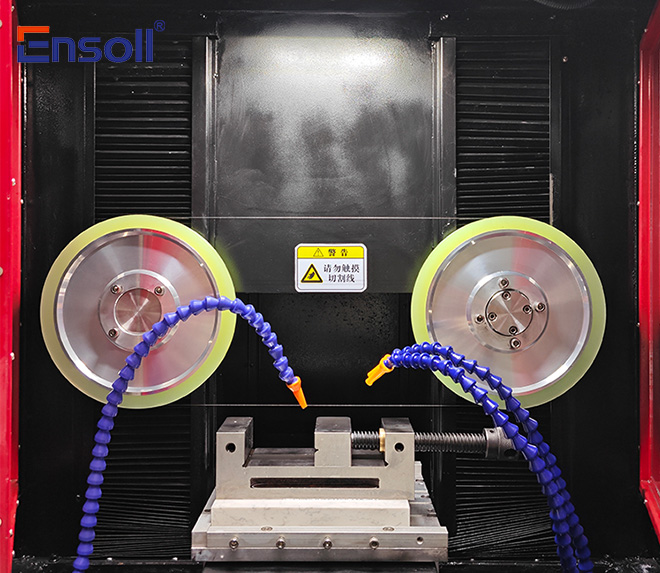

ESG200-2T cutting chamber — guide spools, coolant nozzles and workpiece vice

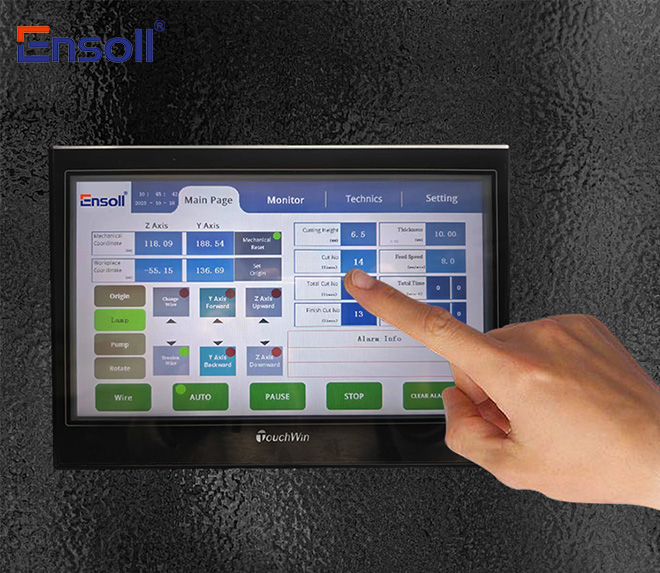

ESG200-2T touch-screen HMI — cutting height, thickness and feed speed settings
ESG200-2T endless diamond wire saw — front view showing both wire spools
ESG200-2T endless diamond wire saw — three-quarter view
ESG200-2T endless diamond wire saw — side view of the cutting chamber
ESG200-2T cutting chamber — guide spools, coolant nozzles and workpiece vice
ESG200-2T touch-screen HMI — cutting height, thickness and feed speed settings

ESG200-2T Gantry Endless Diamond Wire Saw Machine

Description :

This device is also known as a gantry cutting machine. The gantry is made using integral casting or steel structure, and all parts undergo heat treatment to eliminate stress, ensuring higher precision. It is suitable for various industries.
Send Message

This page is kept as a wire-compatibility reference. The machine is engineered and built at our group plant in Zhengzhou, China. What we supply from Singapore is the consumable: endless diamond wire loops, spool wire and custom specifications — matched to this model’s wire path, tension window and guide-wheel geometry.

See wire specifications and formats →

Features :

ESG200-2T is a compact gantry-style endless diamond wire saw machine for precision cutting of hard, brittle and high-value materials. Its endless diamond wire runs in one direction, supporting a narrow kerf, low cutting force and stable cutting quality for straight or programmed cutting paths.

This model is suited to users who need a space-efficient machine with automatic tension control and repeatable operation. Compare it with the complete endless diamond wire saw machine range and select a matched endless diamond wire for the target material.

1. 25% space-saving; 15% higher processing efficiency

2. Automatic tension adjustment structure design, no manual adjustment needed.

3. Single person can change wire in just 1 minute, significantly reducing wire-changing time.

4. Dry and wet separation, no dust pollution.

5. Single operator for multiple devices, reducing labor costs by 35%; effectively prevents mishaps due to operator errors.

Machine functions

Location Memory
This machine is equipped with a Location Memory function, which automatically records the current cutting position in the event of an abnormal interruption. This allows for easy recovery and continuation of the cutting process.
This function is enabled by default.
Function Logic:
① Default on
The position memory function is enabled by default at the factory. Users can manually disable it in the setting page if needed.
② Automatic Position Recording During Abnormal Interruptions
If an abnormal event occurs during operation (such as power outage or emergency stop), the system will automatically record the current position as a memory point (point B), which will be used for resuming the cutting process.
③ Resuming After Restarting
After restarting the machine, clicking the "Auto" button will cause the diamond wire to return first to the previously set work origin (Point A) at fast automatic speed, and then move to the memory point (Point B) to resume cutting from here.
④ Handing Multiple Interruptions
If another interruption occurs before reaching the memory point (B), the system will retain Point B as the valid memory point.
However, if the wire has moved past the Point B and another interruption occurs at a new position (e.g., Point D), the system will update the memory point to Point D, ensuring the next resume point is accurate.
⑤ Behavior After Normal Completion
If the cutting task completes normally and the working origin is not reset, the system will continue to use the previously set working origin (point A) for the next automatic cutting process.


Users can also perform a reset operation in the system to clear the wheel groove runtime and reset it to zero, making it easier to manage maintenance records.
Notes:
① The runtime of the guide wheels and diamond wire is counted from the moment the wheels start rotating and the wire begins moving. The total machine runtime is calculated from the moment the machine is powered on.
② Do not perform the reset operation while the guide wheels or diamond wire are running. Please ensure the machine is in a stopped state before resetting, to maintain data accuracy and system stability.

Demister:
The demister is mainly used to remove mist, water vapor, or oil fumes generated during machine operation. This helps to keep the internal environment clean and stable, thereby improving operational efficiency and ensuring safety.
Notes: This function is only active when the demister button is turned on. Please enable it as needed according to your processing conditions.

Technical Parameters :

Electric 220v
Machine size 800mm×650mm×1600mm(LxWxH)
Total power 1.5Kw
Total weight 250KG
Worktable load capacity 100kg
Drive mode Servo
Maximum speed 2800 RMP
Wire length 2630mm
Cutting thickness 0.1-200mm(adjustable)
Maximum cutting size 200mm×200mm×200mm(L×W×H)
Maximum cutting size when rotated φ200×120mm
Water tank size 680×610×540mm(150L)
Maximum linear speed 38m/s

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

  • Solar panels and wind turbines — renewable energy applications

    Silicon cutting

  • Optical glass cutting with an endless diamond wire

    Optical glass cutting

  • Graphite and corrugated paper cutting with an endless diamond wire

    Graphite/Corrugated paper

  • Ceramic target cutting with an endless diamond wire

    Ceramic/Target cutting

  • Crystal cutting with an endless diamond wire

    Crystal Cutting

  • Metal cutting with an endless diamond wire

    Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.



Cutting video:

Frequently Asked Questions

Q: What materials can the ESG200-2T cut?
The ESG200-2T is built for hard, brittle and high-value materials - graphite, silicon, optical glass, ceramics, magnetic materials, crystals and similar workpieces. Because an endless diamond wire removes material with low cutting force, fragile or expensive parts can be sectioned with a narrow kerf and limited edge damage.

Q: Why choose an endless diamond wire instead of a reciprocating wire?
An endless wire travels in one direction only, so the wire is never reversed. There is no reversal impact at the end of a stroke, no directional marking on the cut face, and the cutting force stays constant. The practical result is a narrower kerf, a more uniform surface and longer wire life on hard and brittle material.

Q: Can the ESG200-2T be specified around a particular workpiece?
Yes. Workholding, clamping and the cutting envelope are specified against the parts you actually need to section, rather than against a fixed catalogue size. Send the material, the blank dimensions and the required surface finish, and the machine is quoted to that requirement.

Q: Who supplies the ESG200-2T and where is it built?
ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.

Frequently asked questions

What materials can the ESG200-2T cut?

The ESG200-2T is built for hard, brittle and high-value materials - graphite, silicon, optical glass, ceramics, magnetic materials, crystals and similar workpieces. Because an endless diamond wire removes material with low cutting force, fragile or expensive parts can be sectioned with a narrow kerf and limited edge damage.

Why choose an endless diamond wire instead of a reciprocating wire?

An endless wire travels in one direction only, so the wire is never reversed. There is no reversal impact at the end of a stroke, no directional marking on the cut face, and the cutting force stays constant. The practical result is a narrower kerf, a more uniform surface and longer wire life on hard and brittle material.

Can the ESG200-2T be specified around a particular workpiece?

Yes. Workholding, clamping and the cutting envelope are specified against the parts you actually need to section, rather than against a fixed catalogue size. Send the material, the blank dimensions and the required surface finish, and the machine is quoted to that requirement.

Who supplies the ESG200-2T and where is it built?

ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.
