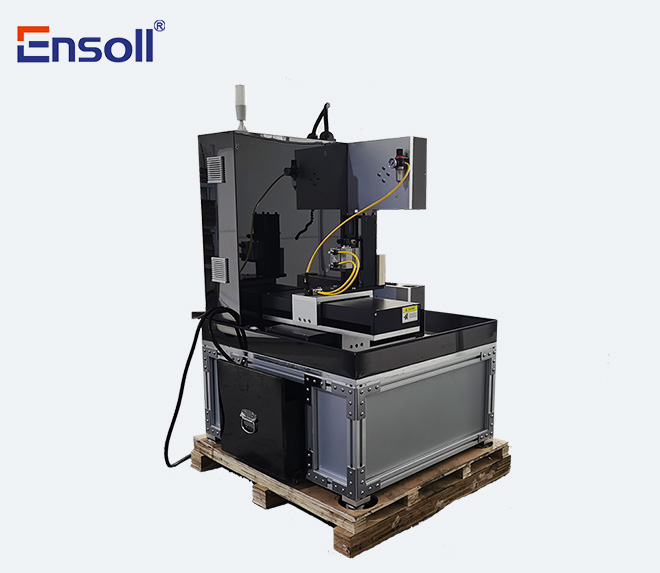

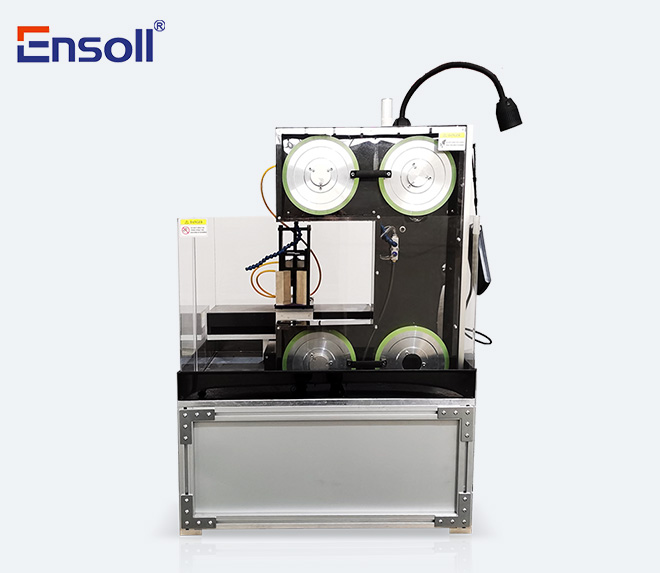

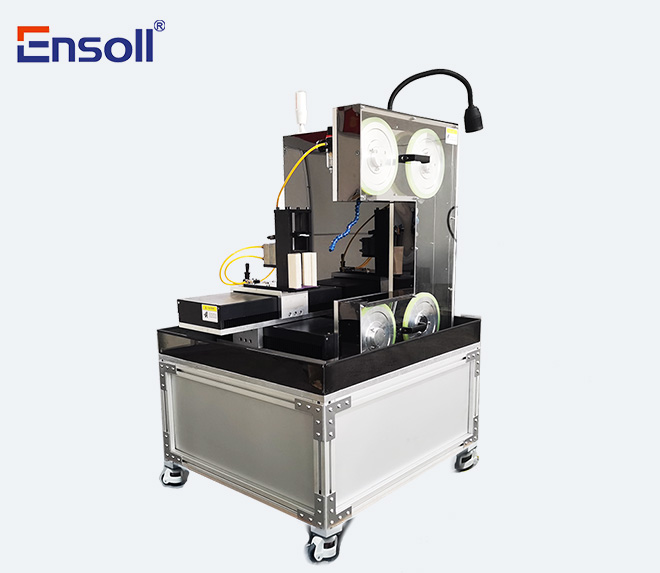

ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw
ESV260-4T Vertical Endless Diamond Wire Saw

ESV260-4T Vertical Endless Diamond Wire Saw

Description :

The ESV260 diamond wire saw cutting machine is characterized by its small size, vertical cutting method, automatic tensioning function, easy operation, and suitability for cutting various metal and non-metal composite materials such as glass, rocks, jade, monocrystalline silicon, silicon carbide, ceramics, epoxy boards, and other materials. It is especially suitable for cutting high-value hard and brittle materials.
Send Message

This page is kept as a wire-compatibility reference. The machine is engineered and built at our group plant in Zhengzhou, China. What we supply from Singapore is the consumable: endless diamond wire loops, spool wire and custom specifications — matched to this model’s wire path, tension window and guide-wheel geometry.

See wire specifications and formats →

Features :

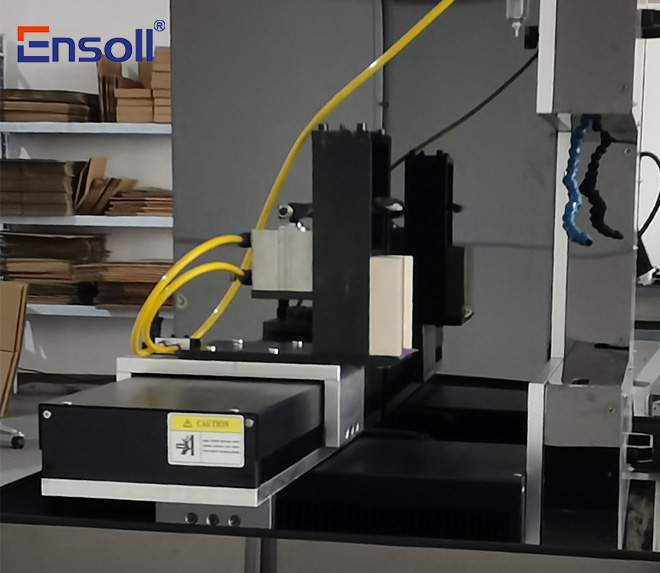

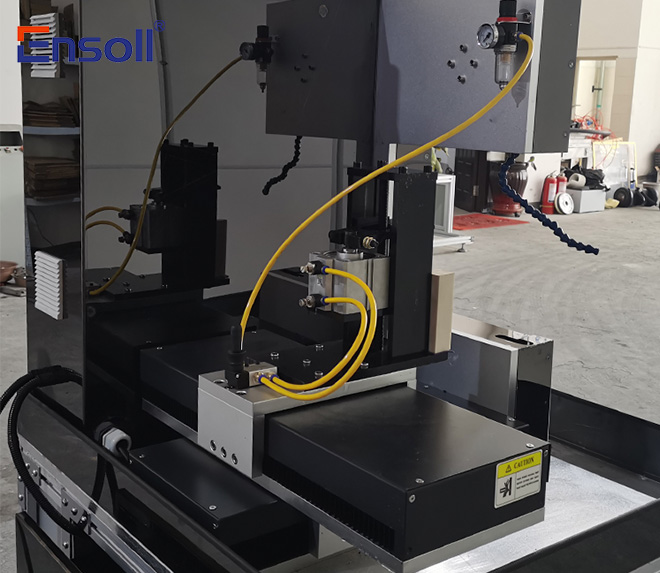

ESV260-4T is a compact vertical endless diamond wire saw machine for precision sectioning where floor space and straightforward operation matter. Its continuous loop wire and intelligent tension structure support stable cutting of hard, brittle or fragile workpieces.

The vertical layout provides practical loading and cutting visibility for laboratory, prototype and low-volume production tasks. Review the broader endless wire saw machine range when a different orientation or larger travel is required.

1. The auxiliary function for changing wiresmakes it easier to change wires

2. Easy to operate

3. Cleverly designed tension structureintelligent adjustment of tension force

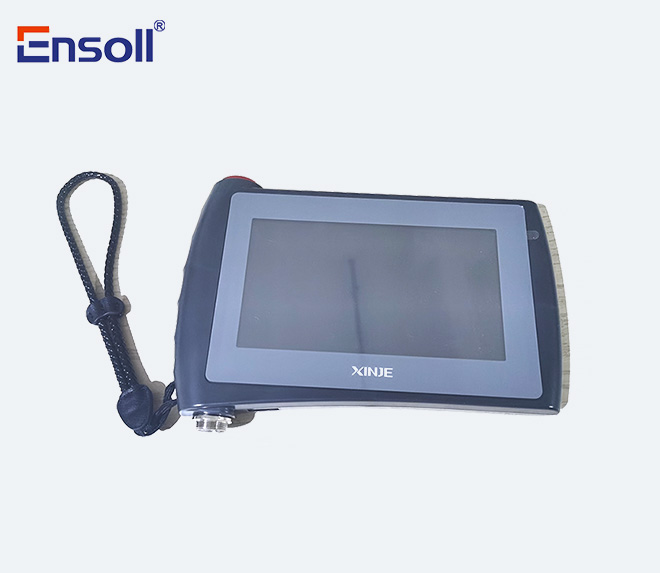

4. The Exclusive lntelligent Digital TestingPlatform ensures the optimal cutting plan

Technical Parameters :

Electric 220v
Machine size 1000mm×900mm×1630mm(LxWxH)
Total power 1.5Kw
Total weight 250KG
Worktable load capacity 150kg
Motor speed 2800 RPM
Feed distance 300mm×300mm×300mm(X×Y×Z)
Maximum cutting size 250mm×250mm×250mm(L×W×H)
Positioning accuracy ±0.05mm
Max linear speed 310×410×820mm (150L)

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

  • Solar panels and wind turbines — renewable energy applications

    Silicon cutting

  • Optical glass cutting with an endless diamond wire

    Optical glass cutting

  • Graphite and corrugated paper cutting with an endless diamond wire

    Graphite/Corrugated paper

  • Ceramic target cutting with an endless diamond wire

    Ceramic/Target cutting

  • Crystal cutting with an endless diamond wire

    Crystal Cutting

  • Metal cutting with an endless diamond wire

    Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.



Cutting video:

Frequently Asked Questions

Q: What is the ESV260-4T designed for?
It is a compact vertical endless diamond wire saw for precision sectioning where floor space and straightforward operation matter. The vertical format keeps the cutting zone visible and accessible, which suits workshops that section a variety of small to medium workpieces rather than one fixed product.

Q: How does the intelligent tension structure help on fragile parts?
Tension is maintained automatically rather than set by hand for each job. On a fragile or high-value workpiece, a consistent low cutting force is what prevents chipping and micro-cracking, and it removes the operator-to-operator variation that hand tensioning introduces.

Q: Can the ESV260-4T be used for production rather than one-off cuts?
Yes. The machine uses the same continuous-loop diamond wire method as the larger models, so it can run repeat sectioning work as well as single samples. Throughput on a compact machine is governed by the workpiece size and the number of cuts, which is why the parts are reviewed before quoting.

Q: Who supplies the ESV260-4T and where is it built?
ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.

Frequently asked questions

What is the ESV260-4T designed for?

It is a compact vertical endless diamond wire saw for precision sectioning where floor space and straightforward operation matter. The vertical format keeps the cutting zone visible and accessible, which suits workshops that section a variety of small to medium workpieces rather than one fixed product.

How does the intelligent tension structure help on fragile parts?

Tension is maintained automatically rather than set by hand for each job. On a fragile or high-value workpiece, a consistent low cutting force is what prevents chipping and micro-cracking, and it removes the operator-to-operator variation that hand tensioning introduces.

Can the ESV260-4T be used for production rather than one-off cuts?

Yes. The machine uses the same continuous-loop diamond wire method as the larger models, so it can run repeat sectioning work as well as single samples. Throughput on a compact machine is governed by the workpiece size and the number of cuts, which is why the parts are reviewed before quoting.

Who supplies the ESV260-4T and where is it built?

ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.

Supplied by ENSOLLTECH PTE. LTD.

ENSOLLTECH PTE. LTD. is a Singapore company (UEN 202551184N), registered at 266A South Bridge Road, #02-01, Singapore 058815. We supply endless diamond wire loops and diamond wire saw machines; the products are manufactured at our group’s own ISO 9001-certified plant in Zhengzhou, China — not sourced from third-party traders.
