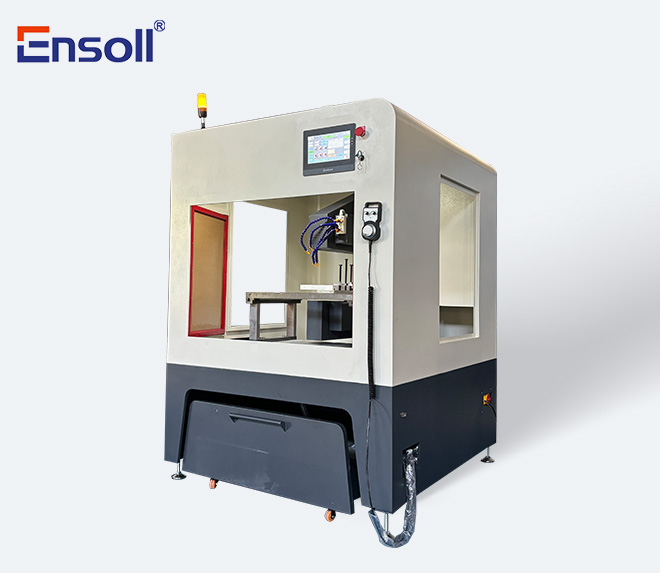

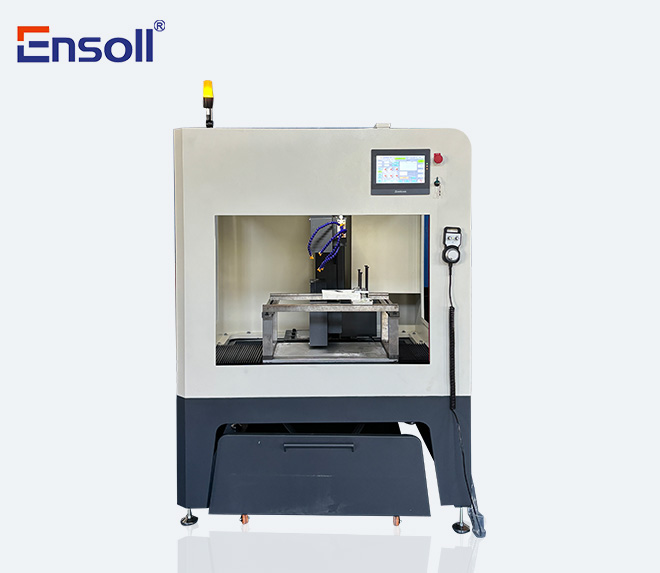

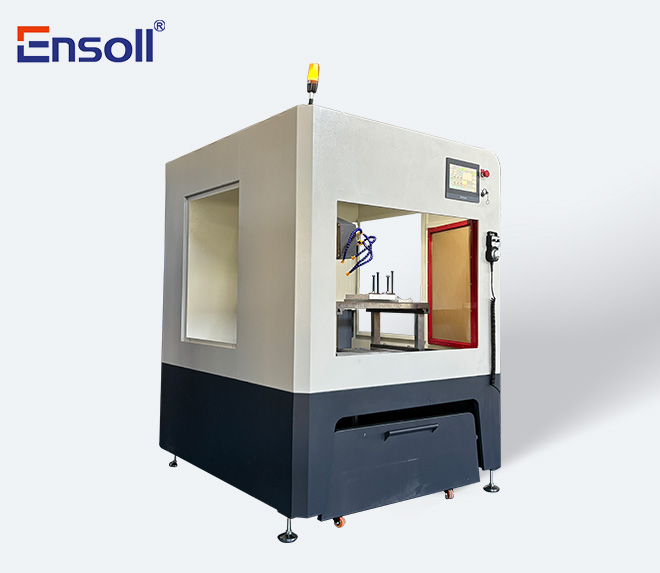

ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw
ESS200-4T Special-Shape Endless Diamond Wire Saw

ESS200-4T Special-Shape Endless Diamond Wire Saw

Description :

This special-shaped cutting machine can cut materials into various shapes with high speed, smooth cutting surfaces, easy operation, environmental friendliness, and is suitable for cutting various materials, especially those with specific shape requirements.
Send Message

This page is kept as a wire-compatibility reference. The machine is engineered and built at our group plant in Zhengzhou, China. What we supply from Singapore is the consumable: endless diamond wire loops, spool wire and custom specifications — matched to this model’s wire path, tension window and guide-wheel geometry.

See wire specifications and formats →

Features :

ESS200-4T is a special-shape endless diamond wire saw machine for programmed cutting of profiles that are difficult to produce with conventional blades. The endless diamond wire applies low cutting force and follows a narrow path, supporting delicate or high-value workpieces.

Fixture design, wire specification and path planning are selected around the material and required geometry. Review related endless diamond wire saw application cases or submit a drawing and sample for process evaluation.

1. The machine rack is welded with square tubes, and the outer shell is made of spray coated steel parts. The structure is simple, beautiful, and practical.

2. The sink below the rack is equipped with four sets of pulley feet, which are easy to move and stable to place and adjust.

3. The body has waterproof treatment and can be cut by adding water.

4. The tension mechanism is automatic and does not require tension force calculation.



Technical Parameters :

Machine size 1595mm* 1383mm* 1805mm (L * W * H)
Total weight 980KG
Total power 3.0KW
Maximum speed 2800 RMP
Positioning accuracy ±0.05mm
Wire length 2630mm
Drive mode Servo
Working voltage 220V
Worktable load capacity 100kg
Cutting stroke 300mm * 300mm
Maximum cutting size 250mm * 250mm * 250mm
Dimensions of water tank 1190mm * 1050mm * 430mm
Maximum linear speed 38m/s

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

  • Solar panels and wind turbines — renewable energy applications

    Silicon cutting

  • Optical glass cutting with an endless diamond wire

    Optical glass cutting

  • Graphite and corrugated paper cutting with an endless diamond wire

    Graphite/Corrugated paper

  • Ceramic target cutting with an endless diamond wire

    Ceramic/Target cutting

  • Crystal cutting with an endless diamond wire

    Crystal Cutting

  • Metal cutting with an endless diamond wire

    Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.



Cutting video:

Frequently Asked Questions

Q: What is special-shape cutting on the ESS200-4T?
The machine is set up for programmed contour cutting, so the wire follows a path rather than making only straight sections. That allows profiles which are difficult or impossible to produce with a conventional blade - curved outlines, internal cut-outs and irregular shapes in hard, brittle material.

Q: Why is a wire better than a blade for a complex profile?
A blade has a fixed width and a straight edge, so a curved or internal profile forces either a compromise shape or a large amount of wasted material. A diamond wire follows a narrow path and exerts low force, which is what makes delicate or high-value shaped parts feasible.

Q: Does the operator have to calculate wire tension?
No. Tension is controlled automatically, so the same programmed path can be repeated without a manual tension step between parts. For contour work, where the wire continuously changes direction in the material, that consistency matters more than on a straight cut.

Q: Who supplies the ESS200-4T and where is it built?
ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.

Frequently asked questions

What is special-shape cutting on the ESS200-4T?

The machine is set up for programmed contour cutting, so the wire follows a path rather than making only straight sections. That allows profiles which are difficult or impossible to produce with a conventional blade - curved outlines, internal cut-outs and irregular shapes in hard, brittle material.

Why is a wire better than a blade for a complex profile?

A blade has a fixed width and a straight edge, so a curved or internal profile forces either a compromise shape or a large amount of wasted material. A diamond wire follows a narrow path and exerts low force, which is what makes delicate or high-value shaped parts feasible.

Does the operator have to calculate wire tension?

No. Tension is controlled automatically, so the same programmed path can be repeated without a manual tension step between parts. For contour work, where the wire continuously changes direction in the material, that consistency matters more than on a straight cut.

Who supplies the ESS200-4T and where is it built?

ENSOLLTECH PTE. LTD., a Singapore company (UEN 202551184N, 266A South Bridge Road, #02-01, Singapore 058815), supplies the machine worldwide. It is built at the group's own ISO 9001 certified plant, Zhengzhou Ensoll Tools Technology Co., Ltd., in Zhengzhou, China.
