ESH300-2T

Description :

The ESH300 parallel cutting device comes with a rotating head, enabling high-efficiency cutting suitable for various hard and brittle materials, and can also accomplish multi-angle cutting.

Send Message

Features :

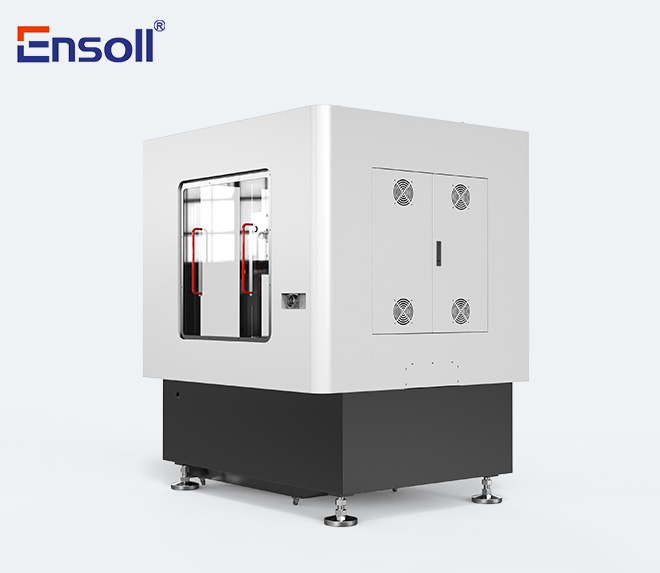

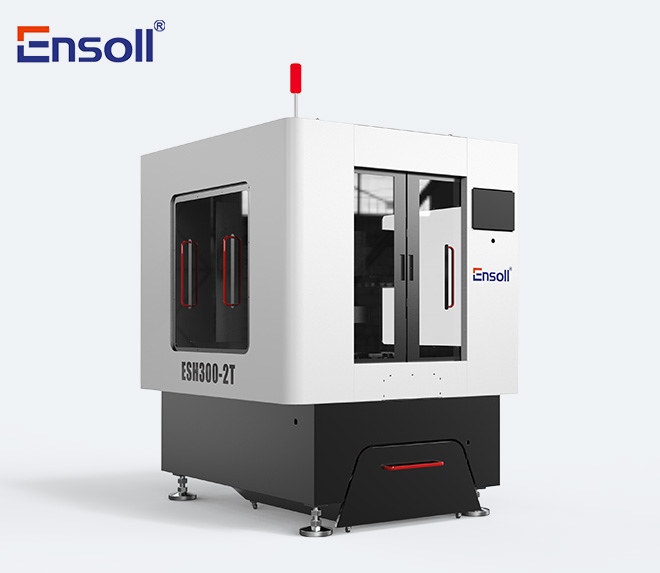

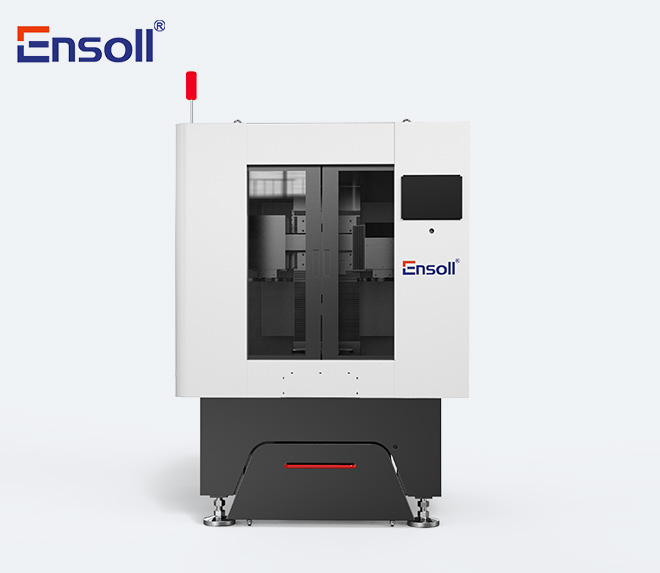

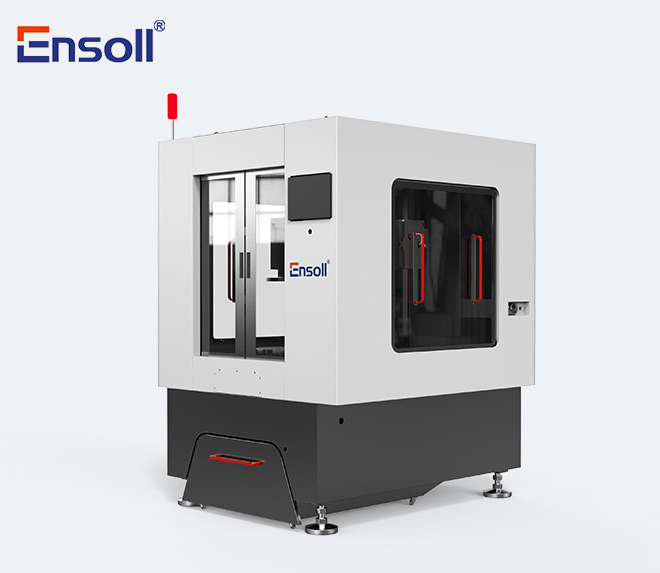

ESH300-2T is a horizontal endless diamond wire saw machine with a rotating cutting head for efficient sectioning and multi-angle work. Its endless diamond wire travels in one direction, helping reduce wire-reversal marks while maintaining a narrow kerf.

The compact horizontal layout is suitable for varied hard and brittle materials where positioning flexibility and controlled cutting force are required. Compare other endless diamond wire saw machines when a larger working envelope or different cutting orientation is needed.

1. Equipped with rotary head cutting

2. 50% reduction in cutting time and 55%，Perfect cutting quality and equipment lifespan

3. No noise pollution, more stable cutting effectand higher accuracy

Technical Parameters :

Machine size	1570mm×1500mm×1950mm(LxWxH)
Loding table size	300mm×300mm
Total weight	1000KG
Max cutting size	300mm×300mm×300mm(LxWxH)
Water tank size	650mm×640mm×500mm(150L)
Loading capacity	200KG
Power	3000W
Feed distance	300mm×300mm×300mm(X×Y×Z）
Motor speed	2800RPM
Cutting thickness	0.1-300mm（adjustable)
Positioning accuracy	±0.05mm
Max linear spend	38m/s

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

Silicon cutting
Optical glass cutting
Graphite/Corrugated paper
Ceramic/Target cutting
Crystal Cutting
Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.

Cutting video：
