Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire
Semi-Coated Endless Diamond Wire

Semi-Coated Endless Diamond Wire

Description :

Semi-coated endless diamond wire enables high-speed tire cutting with smooth finishes, no coolant needed. Multi-strand design ensures durability and cost efficiency for various tire types.
Send Message

Features :

The Semi-Coated Endless Diamond Wire is an advanced cutting solution specifically engineered for tire processing applications. Utilizing a unique semi-coated diamond distribution technology and multi-strand wire construction, this specialized cutting wire delivers exceptional performance in dry cooling conditions. It achieves high-efficiency cutting with remarkably smooth surfaces that require no secondary polishing, significantly improving production efficiency and operational economics. Designed for cutting diverse tire varieties

Cross-sectional view of tire cutting

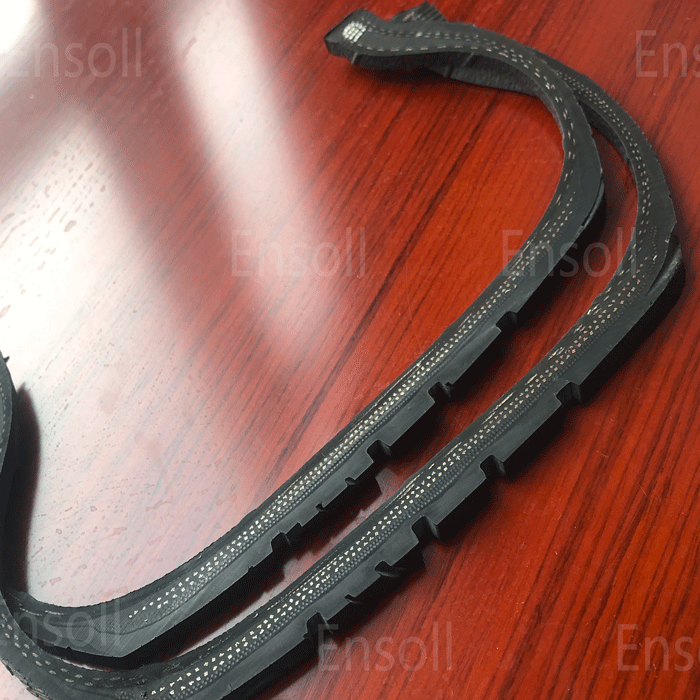

endless diamond wire saw 13

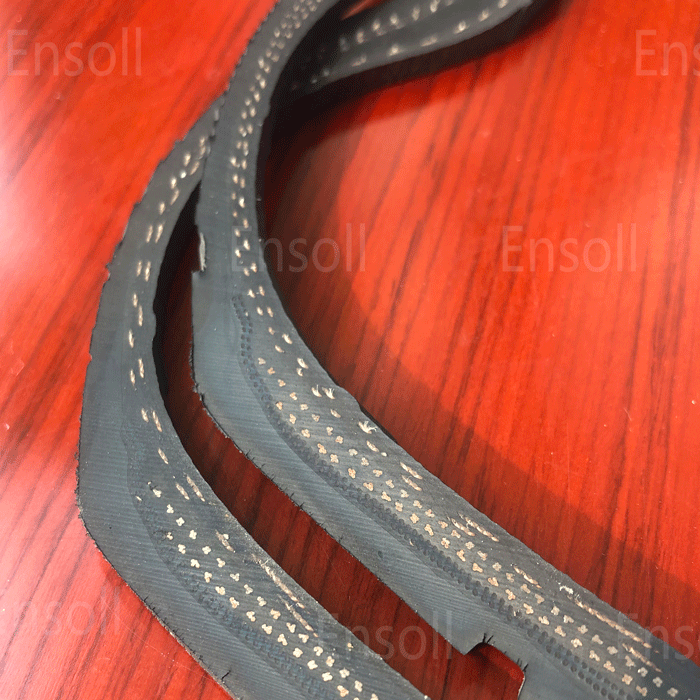

endless diamond wire saw 12

Key Features

  1. Semi-Coated Diamond Technology

   Precisely controlled diamond particle distribution and bonding strength ensure optimal cutting sharpness while preventing excessive wear, significantly extending service life.



  1. Multi-Strand Wire Construction

   Enhanced flexibility and fatigue resistance through advanced stranding technology, maintaining stable performance under high-speed operation and complex cutting paths.



  1. Optimized Linear Speed Parameters

   With an operational range of 30-60 m/s and standard speed of 35 m/s, provides perfect balance between cutting efficiency and surface quality for tire materials.



  1. Dry Processing Capability

   Eliminates the need for liquid coolants, reducing operational costs and environmental impact while maintaining consistent cutting performance.

Performance Advantages

  • Superior Cutting Quality: Produces clean, smooth cuts that eliminate the need for secondary finishing operations
  • Enhanced Efficiency: High linear speed combined with optimal feed rate ensures rapid processing with consistent results
  • Exceptional Durability: 130 N tensile strength and robust construction withstand demanding industrial applications
  • Cost-Effective Operation: Dry cooling system reduces maintenance requirements and operational expenses

Application Benefits

The Semi-Coated Endless Diamond Wire revolutionizes tire cutting operations by delivering:

  • Reduced Processing Time: Efficient material removal minimizes cycle times
  • Improved Surface Finish: Clean cuts preserve material integrity and appearance
  • Lower Total Cost: Extended service life and dry operation reduce overall production costs
  • Enhanced Reliability: Consistent performance ensures predictable results and scheduling

Technical Support

Our engineering team provides comprehensive technical support to help optimize cutting parameters for specific tire types and production requirements. Contact our specialists for customized application analysis and performance optimization.

Pro Tip:Have a unique cutting challenge? Contact our R&D team for a tailor-made Diamond Wire Saw Cutting Machine and a seamless total solution.

Technical Parameters :

Specification Item Specification Value
Wire Type Multi strand wire
Linear Speed (m/s) 35
Linear Velocity (m/s) 30 - 60
Feed Speed (mm/min) 50
Cooling Way Dry
Tensile Strength 130 N
Application Tire

Application areas :

In addition to the aforementioned areas, we can also cut many other materials and provide free trial cutting services and one-stop ODM services. If you have any technical questions, we can provide free technical consultation. Please feel free to contact us!

  • Solar panels and wind turbines — renewable energy applications

    Silicon cutting

  • Optical glass cutting with an endless diamond wire

    Optical glass cutting

  • Graphite and corrugated paper cutting with an endless diamond wire

    Graphite/Corrugated paper

  • Ceramic target cutting with an endless diamond wire

    Ceramic/Target cutting

  • Crystal cutting with an endless diamond wire

    Crystal Cutting

  • Metal cutting with an endless diamond wire

    Metal cutting

HOW to choose the right model of the machine?

1.The hardness of your material and the size of the materials before cutting.

2.The cutting method which is best for your material.

3.If any special request for cutting.



Cutting video:

Frequently Asked Questions

Q: What is semi-coated endless diamond wire?
Semi-coated endless diamond wire is a cutting consumable where diamond grit is bonded to only part of the wire circumference, leaving bare intervals. This segmented coating reduces friction and heat buildup during dry cutting of tires and composite materials.

Q: What materials can semi-coated endless diamond wire cut?
It is primarily used for tire cutting (steel-belted radial tires), rubber, foam composites, and other materials where dry cutting with minimal heat generation is required.

Q: How does semi-coating differ from full coating on endless diamond wire?
Full coating applies diamond grit around the entire wire circumference. Semi-coating leaves bare segments along the wire length, creating air gaps that dissipate heat and reduce cutting friction, making it ideal for dry-cutting applications.

Q: Can you customize the semi-coating pattern for my application?
Yes. Ensoll can customize the coated-to-bare ratio, segment length, diamond grit size, and wire diameter to match your specific material and cutting speed requirements.

Q: What is the lifespan of semi-coated endless diamond wire?
Service life depends on material hardness, cutting speed, and wire tension. For tire cutting applications, typical lifespan ranges from 8 to 40 hours of active cutting time.

Frequently asked questions

What is semi-coated endless diamond wire?

Semi-coated endless diamond wire is a cutting consumable where diamond grit is bonded to only part of the wire circumference, leaving bare intervals. This segmented coating reduces friction and heat buildup during dry cutting of tires and composite materials.

What materials can semi-coated endless diamond wire cut?

It is primarily used for tire cutting (steel-belted radial tires), rubber, foam composites, and other materials where dry cutting with minimal heat generation is required.

How does semi-coating differ from full coating on endless diamond wire?

Full coating applies diamond grit around the entire wire circumference. Semi-coating leaves bare segments along the wire length, creating air gaps that dissipate heat and reduce cutting friction, making it ideal for dry-cutting applications.

Can you customize the semi-coating pattern for my application?

Yes. Ensoll can customize the coated-to-bare ratio, segment length, diamond grit size, and wire diameter to match your specific material and cutting speed requirements.

What is the lifespan of semi-coated endless diamond wire?

Service life depends on material hardness, cutting speed, and wire tension. For tire cutting applications, typical lifespan ranges from 8 to 40 hours of active cutting time.
